Aura Design Ltd is proud to introduce their latest innovation.

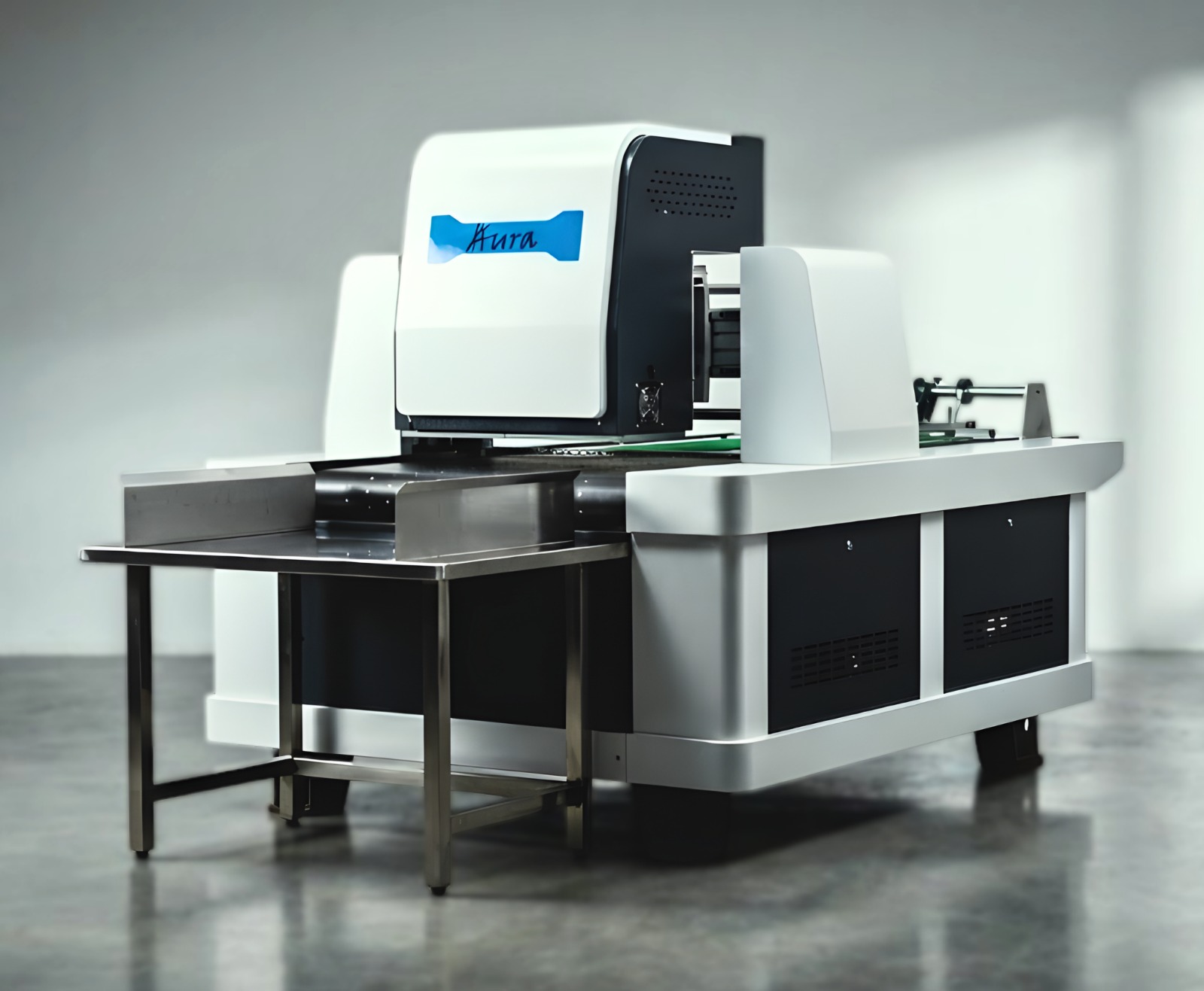

Single Pass High Speed Digital Water Base Ink Printer for carton / box printing. This cutting-edge printer combines economy and efficiency, making it an ideal choice for businesses seeking high production capabilities with minimal operating costs.
Key Features:
High Speed Printing:
Designed for rapid output, this printer ensures your projects are completed swiftly without compromising on quality.
Digital Precision:
Utilizing advanced digital technology, the printer delivers sharp, vibrant CMYK prints, ensuring every detail is captured accurately.
Water Based Ink:
The use of water based inks not only provides exceptional print quality but also reducesenvironmentalimpact,aligningwitheco-friendlypractices.
Low Maintenance:
Built with reliability in mind, the printer requires minimal maintenance, reducing downtime and operational costs.
Versatility for Smaller Quantities:
Ideal for short run printing jobs, this printer allows for flexible production, catering to both large orders and smaller, customized batches.
Cost-Effective:
By combining high efficiency with low operational costs, this printer offers a cost effectivesolutionforcartonprintingneeds.
Environmentally Friendly:
Committed to sustainability, the printer’s water based inks and energy efficient design contribute to a reduced environmental footprint.
Aura Mini800 – 1HP/ 2HP-Technical Specifications
| Printing Head | 1 - 2, HP 452 Printhead |
| Max. Printing Width | 215mm (1 Head), 430mm (2 Heads) |
| Maximum Paper Width | 750mm |
| Min. Paper Width | 50mm |
| Min. Paper Length | 40mm |
| Resolution | 1200 x 300, 1200 x 600, 1200 x 1200 DPI |
| Ink Type | Water Base Dye Ink for Thermal Print Head |
| Colors | C.M.Y.K |
| Printing Technology | Thermal Printhead |
| RIP | Maintop |
| Printing Mode | One Pass Printing |
| Support File | TIFF, BMP, JPEG, JPG, CDR, etc |
| Printing Speed | 10 - 30 Meter / Minute (Adjustable) |
| Data Transfer | NIC + Optical Cable |
| Computer System | Windows 7 / Windows 8 / Windows 10 / XP |
| Control System | Fully Function Controlled by Touch Screen |
| Media Type | Kraft Paper, Wood / Any Media printable with Water Base Ink |
| Air Required | 0.6-0.84Mpa, ≥150L/min (Only if special air-suction feeder required) |
| Power | AC 220-230v, Single Phase, 50 / 60 Hz, 2kw |
| Working Condition | Temperature: 10°C~30°C, Humidity: 40~60% |
| Feeder | Belt |
| Machine Length | 3000mm |
| Machine Width | 1200mm |
| Working Length | 5000mm |
| Working Width | 3000mm |
| Machine Net Weight | 400 Kgs |
| Machine Gross Weight | 450 Kgs (after packing) |
| Power | 2000W |
| Air Pressure | Not Required for standard machine |
| Machine Dimension | 3 mtr (L) x 1.2 mtr (W) x 1.2 mtr (H) |
| Packaging Dimensions |
Machine main body: 165cm × 122cm × 124cm (Box-1) Feeder: 152cm × 105cm × 104cm (Box-2) |
| Note | The machine is packed in a plywood box, not a wooden box. Therefore, fumigation is not required. |
